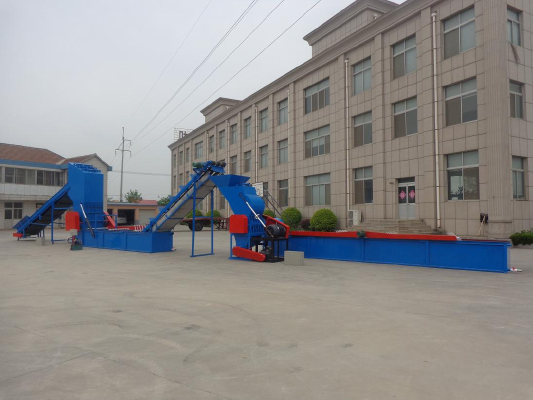

LGSP-2000kg plastic hard materials crushing washing line designed to meet the unbreakable recycled bulk material designed for general-crushing equipment. Strong welded steel construction with a wide range of versatility, whether it is a blow barrels, injection molded parts, profiles, pipes, films, sheets or large pieces of solid body can be broken recycling.

Chassis with central line as the boundary is divided into three parts on the lower, hydraulic system to open the case and replace or clean the tool box is simple and convenient. At the same time the hydraulic system can be used to replace the screen, easy and convenient.

Over-sized bearing independent of the outer chassis and a dual bearing design, roller bearings have a high load carrying capacity, radial bearings ensure concentric operation of the machine, extending bearing life.

Machine name and technical parameter number:

1,Belt conveyors:

1.1 Belt width:800mm

1.2 Belt length:6000mm

1.3 Motor power:2.2KW.frequency adjust speed

1.4 Transport height can be adjusted

1.5 Rubber Belt material;carbon steel body material

2,High strength broken washing machine

2.1 Motor power:45KW

2.2 Crusher cavity size:1000×600mm

2.3 Diameter of the screen:Φ70-Φ100mm

2.4 Inlet size:1000*1500mm(customizable)

2.5 Move knife number:9 handle

2.6 Fixed knife number:6 handle

2.7 Knife material:SKD-II

2.8 Hydraulic station open feed port for easy tool change

2.9 Hydraulic station power:2.2KW

3,Cleaning pool:

3.1 Sink width:1000mm

3.2 The effective length:6000mm

3.3 Rinsing roll:4 pieces

3.4 Rinse the motor: 2.2KW frequency control

4,Fishing feeder:

4.1 Belt length:4000mm

4.2 Fishing material height:3000mm

4.3 Motor:1.5KW frequency control

5,Secondary crushing and washing

   machine

5.1 Motor power:37KW

5.2 Crusher cavity size: 700×550mm

5.3 Screen diameter:Φ15-Φ20mm(customizable)

5.4 Feed inlet size: 1000*1000mm

5.5 Move knife number:12 handle

5.6 Fixed knife number:4 handle

5.7 Knife material:SKD-II

5.8 Feed screw open mouth for easy tool change

6,The friction material washing

machine

6.1 Screw diameter:φ350mm

6.2 Screw length:2500-3000mm

6.3 Motor power:11KW

7,The second cleaning pool

7.1 Sink width:1000mm

7.2 The effective length:6000mm

7.3 Rinsing roll:4 pieces

7.4 Rinse motor:2.2KW frequency control

8,The secondary feeder fishing:

8.1 Belt length:3000mm

8.2 Fishing material height:2000mm

8.3 Motor:1.5KW frequency control

9,Dryer:

9.1 Motor power:15KW

9.2 Drying barrel length: 2800MM

9.3 The axis of rotation speed:

    1200r/min

9.4 The expected number of ports:

    Double spout

10, Summary:

10.1 Install power:120KW

10.2 Production capacity:2000kg/h

Packaging & Shipping

Packaging Details: Wood case or according to customers’ requirement

Delivery Details:10 to 40 days depends on machine model and configuration
