- Size: 10
- Place of Origin: shandong
- Brand Name:
- Model Number: LGSJ-180/110
- Weight: 30000.000 kg

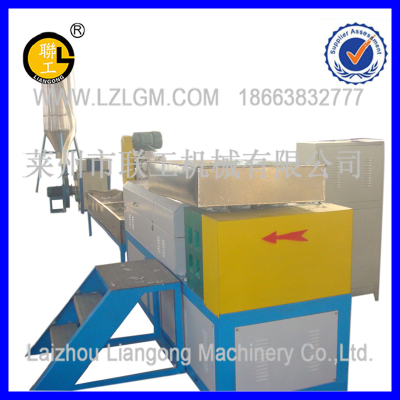

Plastic foaming granulator/foaming granulator/plastic pelletizing machine
1,Use:
The machine is to be use for waste and edge horn EPE,EPS,XPS foaming material recycling. The new models come out, not only to shorten the production cycle, simplify the process, while significantly improved the quality of plastic particles. Is the most ideal foam material recycling equipment.
2,Characteristics:
The host motor is single screw and double stage extruder, the feed section of large diameter screw to facilitate the entry of plastic foam, and plasticization one complete feed by filtering material of the extrusion, the cooling water, cutting of a complete .
- Size: 10
- Place of Origin: shandong
- Brand Name:
- Model Number: LGSJ-180/110
- Weight: 30000.000 kg
Model Parameter | LGSJ-180/110 | LGSJ-250/130 | LGSJ-300/150 |
Feeding section of screw diameter(mm) | 180 | 250 | 300 |
Plasticizing section of screw diameter(mm) | 110 | 130 | 150 |
Host motor power(kw) | 18.5 | 30 | 45 |
Host screw rotate speed (r/min) | 45-55 | 40-50 | 35-45 |
Production capacity(kg/h) | 50-100 | 100-150 | 150-200 |
Head motor power(kw) | 1.5 | 1.5 | 2.2 |
Match cutting power(kw) | 1.1 | 1.1 | 1.5 |
