- Size: 10
- Place of Origin: shandong
- Brand Name:
- Model Number: LGM-44
- Weight: 2000.000 kg

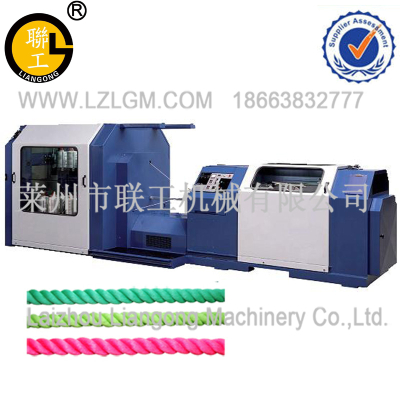

LGM44 Rope Machine is A new rope machine, which make the System unit and system of justice into one system.
M44 Suitable for plastic round wire, flat, single silk, cotton, hemp and other long fiber tow as the raw material produce of 3-10mm rope.
M44-3 Suitable for production of three-stramded rope,M44-4 Suitable for production of four-stranded rope.
Main Features:
1.From the beginning rope to collect the rope in one step.
2.Inverter drive, and the supporting Meters, set a few meters can be automatically shut down, package tours for switch, using the second start mode, automatic power door.
3.Each turn 2 twist, up strength and stability, high efficiency and output speed.
4.Eeasy to change the twist.
- Size: 10
- Place of Origin: shandong
- Brand Name:
- Model Number: LGM-44
- Weight: 2000.000 kg
Specifications | M44-3 | M44-4 |
Rope Range | 4-10mm | 4-10mm |
Spindle Speed | 800 Rev / min | 800 Rev / min |
Twist Direction | S or Z | S or Z |
Twist Range | 8-50mm/twist | 8-50mm/twist |
Line Diameter | ø250*300 | ø 250*300 |
Ø170*340 | Ø170*340 | |
Number of pay-off plate | 3*3 | 4*3 |
3*8 | 4*8 | |
Winding Dimensions | Ø480*280mm*130 | Ø480*280mm*130 |
Winding maximum weight | 25KG | 25KG |
Auxiliary power | 5.5KW-4 | 5.5KW-4 |
Dimension (L * W * H) | 5250*1880*1800 | 5250*1880*2120 |
