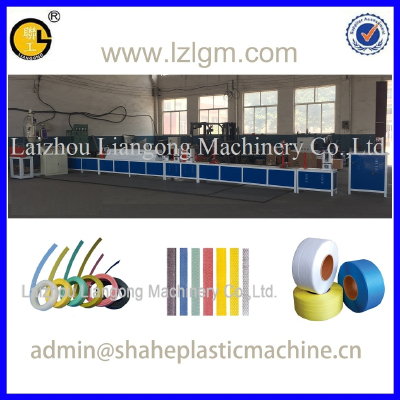

1,LGSJ65/28 extruder

Centre Hight                    1000mm

Screw Speed                    0~70r/min

1.1 Gear box

Harden Gear                     China Changzhou

Reducer Model                 ZLYJ173

1.2  Screw barrel parameters

Screw diameter                  Ø65mm

L/D ratio                            28/1

Screw and cylinder material         38CrMoAlAScrew structure                  Mixing type

Heat treatment                   Nitriding treatment

Surface hardness                HV940~1050

Nitriding depth                   0.6~0.7mm

1.3  Screw tube heating, cooling parameters

Screw tube heating             Infrared ray heat exchanger 3 period of 15KW

1.4  The main motor parameters

Speed adjustment mode           Frequency control of motor speed

Motor power                       15kw

1.5   Electric Control

Temperature control table        OMRON

Low-voltage electrical            SCHNEIDER

2, Extrusion Die

Vertical die                         60mm

Heating power                    1.5kw

3,  Cooling box

Material                               Stainless stell

Specification                       1800*300*300 mm(H*W*H)

4,  First pulling

Roller specification             Ø130*60

Kind of drive                       Chain drive

Drive motor                         1.5Kw Three-phase asynchronous motor

Speed adjustment mode       Frequency control of motor speed

String speed                          0~40m/min

5,  Stretching oven

Length                                   2.5M  (push-pull)

Temperature control              Solid adjustment type temperature control

6,  Embossing tensile machine

Roller specification               Ø150*60

Kind of drive                         Chain drive

Drive motor                           3Kw Three-phase asynchronous motor

Speed adjustment mode         Frequency control of motor speed

String speed                           0~100m/min

7,  Cooling box

Material                                  Stainless stell

Specification                          3000*300*300 mm(L*W*H)

8,  Third pulling

Roller specification                 Ø150*60

Kind of drive                           Chain drive

Drive motor                             0.75Kw Three-phase asynchronous motor

Speed adjustment mode           Frequency control of motor speed

String speed                             0~100m/min

9, Winding

Drive motor                             6-6N torque motor

Speed adjustment mode           Electronic speed control

Paper pipe specification          According to customer requirements

Winding width                        5-15mm

Thickness                                0.4-1.2mm

10,  Summary

Production                               30~50Kg/h
